MIPI D-PHY Test Report

Overall Result: FAIL

Test Configuration Details
Device Description
Fixture SetupAuto Load Switching
CTS Versionv1.00
High Speed Data Rate(Mbps)800
Test Session Details
Infiniium SW Version04.20.0001
Infiniium Model NumberDSO91304A
Infiniium Serial NumberMY52460120
Application SW Version2.42
Debug Mode UsedNo
Last Test Date2013-04-01 07:55:48 +09:00

Summary of Results

Test Statistics
Failed2
Passed8
Total10

Margin Thresholds
Warning< 2 %
Critical< 0 %

Pass# Failed# TrialsTest NameActual ValueMarginPass Limits
011.3.7 HS Data TX Static Common Mode Voltage(Vcmtx)168.67mV18.7 % 150.00mV <= VALUE <= 250.00mV
011.3.8 HS Data TX Vcmtx Mismatch940µV18.8 % 0.00000V <= VALUE <= 5.00mV
011.3.10 HS Data TX Common-Level Variations Above 450MHz (VCMTX(HF))12.05mV19.7 % VALUE < 15.00mV
011.3.9 HS Data TX Common-Level Variations Between 50-450MHz (VCMTX(LF))16.95mV32.2 % VALUE < 25.00mV
011.3.4 HS Data TX Differential Voltage(VOD0 Pulse)-211.32mV45.1 % -270.00mV <= VALUE <= -140.00mV
011.3.4 HS Data TX Differential Voltage(VOD1 Pulse)148.86mV6.8 % 140.00mV <= VALUE <= 270.00mV
111.3.5 HS Data TX Differential Voltage Mismatch (Pulse)62.47mV-346.2 % 0.00000V <= VALUE <= 14.00mV
011.3.6 HS Data TX Single Ended Output High Voltage(VOHHS Pulse)271.81mV24.5 % VALUE <= 360.00mV
011.3.11 HS Data TX 20%-80% Rise Time (tR)373ps0.7 % 100ps <= VALUE <= ComplianceTranTimeMaxs
111.3.12 HS Data TX 20%-80% Fall Time (tF)388ps-4.7 % 100ps <= VALUE <= ComplianceTranTimeMaxs


Report Detail

 Next
1.3.7 HS Data TX Static Common Mode Voltage(Vcmtx) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.7)
Test Summary: Pass Test Description: HS transmit static common-mode voltage.
Pass Limits:[150.00mV to 250.00mV]Vcmtx(Worst)168.67mV
Result Details:
Result Details
HS Data TX Common Mode Voltage(See image)Vcmtx(Differential-1)168.67mVNumber of Vcmtx(Differential-1) Measured3.455000kVcmtx(Differential-0)166.78mVNumber of Vcmtx(Differential-0) Measured10.769000kNumber of HS Burst1Lane NameData
Trial 1
Trial 1: HS Data TX Common Mode Voltage

Top Previous Next
1.3.8 HS Data TX Vcmtx Mismatch Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.8)
Test Summary: Pass Test Description: VCMTX mismatch when output is Differential-1 or Differential-0.
Pass Limits:[0.00000V to 5.00mV]Vcmtx Mismatch940µV
Result Details:
Result Details
Vcmtx(Differential-1)168.67mVVcmtx(Differential-0)166.78mVNumber of HS Burst1Lane NameData

Top Previous Next
1.3.10 HS Data TX Common-Level Variations Above 450MHz (VCMTX(HF)) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 17, CTS v1.00(Test 1.3.10)
Test Summary: Pass Test Description: Common-level variations above 450MHz.
Pass Limits:< 15.00mVVcmtx(HF)12.05mV
Result Details:
Result Details
Common Level Variations(>450Mhz)(See image)Number of HS Burst1Lane NameData
Trial 1
Trial 1: Common Level Variations(>450Mhz)

Top Previous Next
1.3.9 HS Data TX Common-Level Variations Between 50-450MHz (VCMTX(LF)) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 17, CTS v1.00(Test 1.3.9)
Test Summary: Pass Test Description: Common-level variation between 50-450MHz.
Pass Limits:< 25.00mVVcmtx(LF)16.95mV
Result Details:
Result Details
Common Level Variations(50-450MHz)(See image)Number of HS Burst1Lane NameData
Trial 1
Trial 1: Common Level Variations(50-450MHz)

Top Previous Next
1.3.4 HS Data TX Differential Voltage(VOD0 Pulse) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.4)
Test Summary: Pass Test Description: HS transmit differential voltage.
Pass Limits:[-270.00mV to -140.00mV]Vod0(Worst)-211.32mV
Result Details:
Result Details
VOD0 (100000)(See image)Vod(Differential-0)-211.32mVNumber of HS Burst1Lane NameData
Trial 1

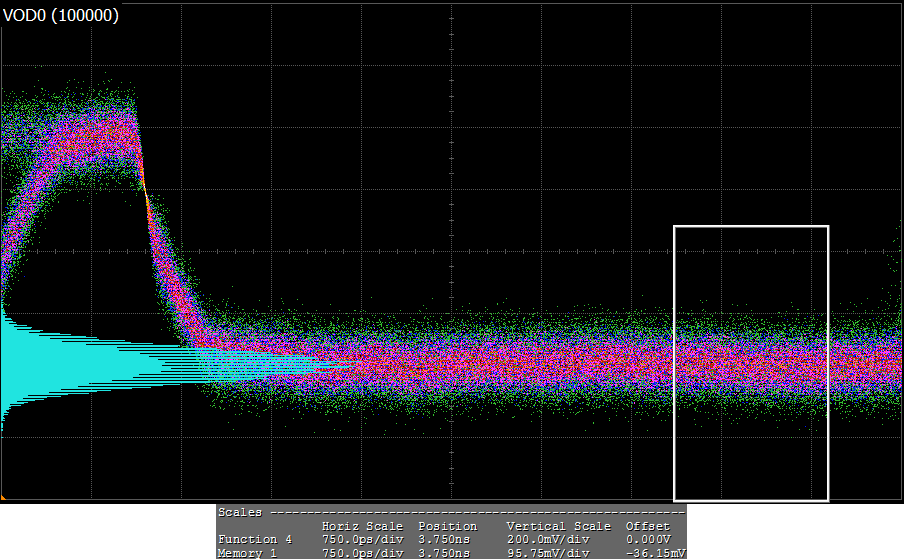

Trial 1: VOD0 (100000)

Top Previous Next
1.3.4 HS Data TX Differential Voltage(VOD1 Pulse) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.4)
Test Summary: Pass Test Description: HS transmit differential voltage.
Pass Limits:[140.00mV to 270.00mV]Vod1(Worst)148.86mV
Result Details:
Result Details
VOD1 (011111)(See image)Vod(Differential-1)148.86mVNumber of HS Burst1Lane NameData
Trial 1

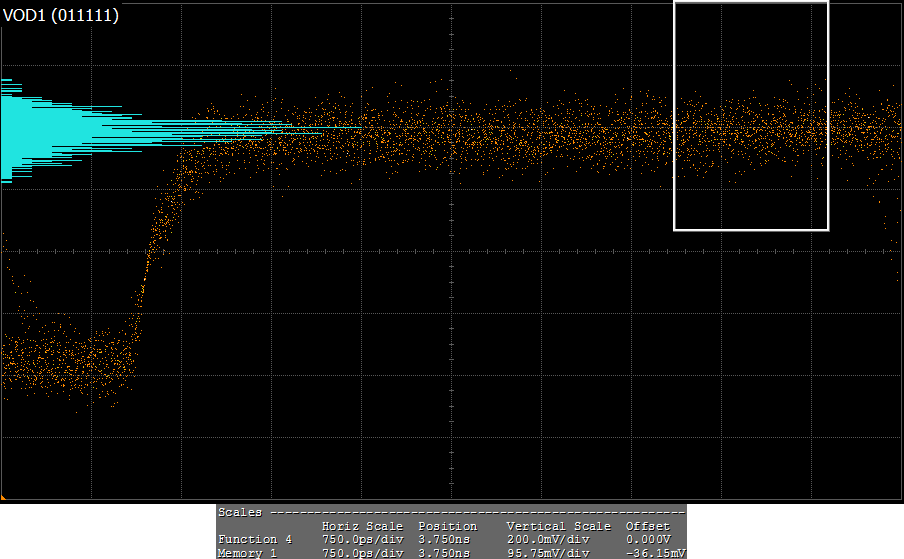

Trial 1: VOD1 (011111)

Top Previous Next
1.3.5 HS Data TX Differential Voltage Mismatch (Pulse) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.5)
Test Summary: FAIL Test Description: VOD mismatch when output is Differential-1 or Differential-0.
Pass Limits:[0.00000V to 14.00mV]Vod Mismatch62.47mV
Result Details:
Result Details
Vod(Differential-1)148.86mVVod(Differential-0)-211.32mVNumber of HS Burst1Lane NameData

Top Previous Next
1.3.6 HS Data TX Single Ended Output High Voltage(VOHHS Pulse) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.6)
Test Summary: Pass Test Description: HS Single Ended output high voltage.
Pass Limits:<= 360.00mVVohhs(Worst)271.81mV
Result Details:
Result Details
DpVOHHS (011111)(See image)DnVOHHS (011111)(See image)Vohhs(Dp)241.56mVVohhs(Dn)271.81mVNumber of HS Burst1Lane NameData
Trial 1

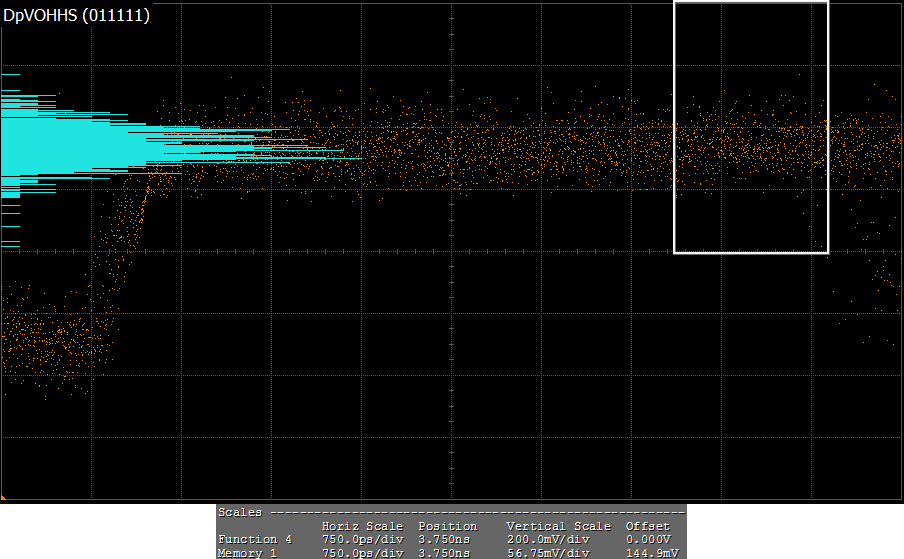

Trial 1: DpVOHHS (011111)
Trial 1: DnVOHHS (011111)

Top Previous Next
1.3.11 HS Data TX 20%-80% Rise Time (tR) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 17, CTS v1.00(Test 1.3.12)
Test Summary: Pass Test Description: 20%-80% rise time of the HS differential signal. ComplianceTranTimeMax is 0.3*UI for Datarate ≤ 1Gbps and 0.35*UI for Datarate > 1Gbps.
Pass Limits:[100ps to ComplianceTranTimeMaxs]Rise Time373ps
Result Details:
Result Details
HS TX Risetime(See image)Measurement Threshold80,20Vod(1)148.86mVVod(0)-211.32mVPassLimit Max (ComplianceTranTimeMax)375psNumber of HS Burst1Lane NameData
Trial 1
Trial 1: HS TX Risetime

Top Previous Next
1.3.12 HS Data TX 20%-80% Fall Time (tF) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 17, CTS v1.00(Test 1.3.12)
Test Summary: FAIL Test Description: 20%-80% fall time of the HS differential signal. ComplianceTranTimeMax is 0.3*UI for Datarate ≤ 1Gbps and 0.35*UI for Datarate > 1Gbps.
Pass Limits:[100ps to ComplianceTranTimeMaxs]Fall Time388ps
Result Details:
Result Details
HS TX Falltime(See image)Measurement Threshold80,20Vod(1)148.86mVVod(0)-211.32mVPassLimit Max (ComplianceTranTimeMax)375psNumber of HS Burst1Lane NameData
Trial 1

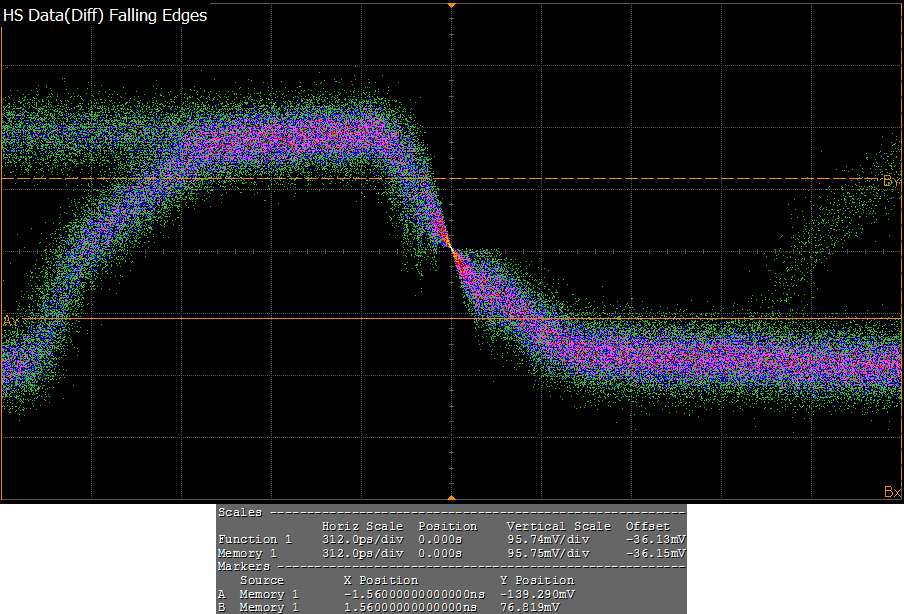

Trial 1: HS TX Falltime

Top Previous
